Bridging ERC20F Tokens with LayerZero Adapters

Overview

This guide shows you how to deploy and configure adapter contracts for ERC20F tokens to enable cross-chain bridging with the LayerZero protocol.

Adapters use a mint/burn mechanism to maintain the total token supply across multiple blockchains:

Burn on chain A, mint on chain B
Burn on chain B, mint on chain A

Fireblocks adapters work natively with ERC20F tokens, and can also integrate with other ERC20 tokens that use AccessControl with MINTER_ROLE and BURNER_ROLE.

Prerequisites

Before you begin, make sure you have:

Two ERC20F tokens deployed on different blockchains and linked to your workspace
- Issue Token endpoint
- Issue Token Multichain endpoint
Token link IDs for both tokens
Vault account with enough native gas tokens on each chain
Admin addresses for:
- DEFAULT_ADMIN_ROLE → defaultAdminAddress
- CONTRACT_ADMIN_ROLE → delegateAddress
- PAUSER_ROLE → pauserAddress

Step 1: Initialize the SDK

`import { Fireblocks, BasePath } from '@fireblocks/ts-sdk';

const fireblocksSdk = new Fireblocks({
  apiKey: 'your-api-key',
  basePath: BasePath.US, // Use BasePath.EU for EU region
  secretKey: 'your-private-key',
  });

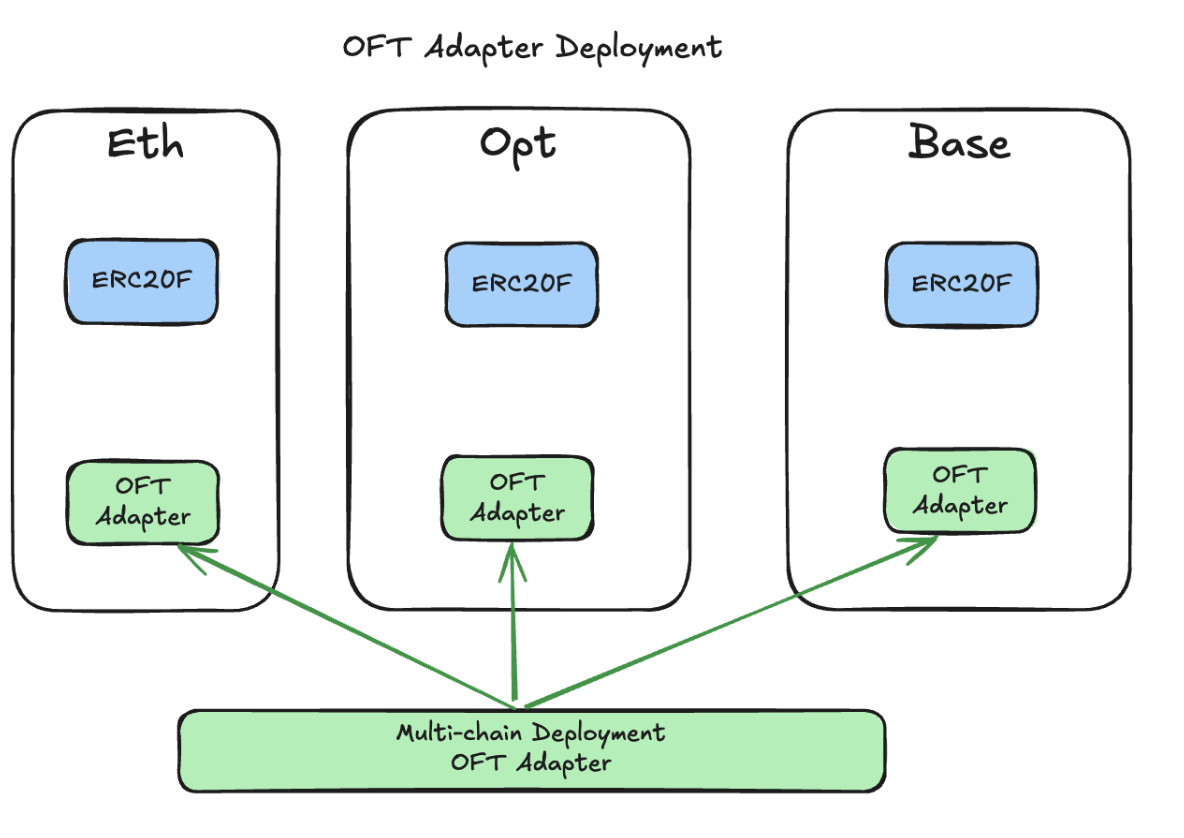

Step 2: Deploy Adapters

Deploy adapters with deployAndLinkAdapters. This generates three transactions per adapter:

Contract deployment
Grant MINTER_ROLE
Grant BURNER_ROLE

const deployAdaptersRequest = {
  vaultAccountId: '0',
  createParams: [
    {
      tokenLinkId: 'first-token-link-id',
      delegateAddress: '0x...',
      defaultAdminAddress: '0x...',
      pauserAddress: '0x...',
    },
    {
      tokenLinkId: 'second-token-link-id',
      delegateAddress: '0x...',
      defaultAdminAddress: '0x...',
      pauserAddress: '0x...',
    },
  ],
  displayName: 'LayerZero Adapters',
  gasless: false, // Optional: Use gasless deployment
};

const deployResponse = await fireblocksSdk.tokenization.deployAndLinkAdapters({
  deployLayerZeroAdaptersRequestDto: deployAdaptersRequest,
});

console.log('Adapter deployment initiated:', deployResponse);

Save the returned adapterLinkId values for the next steps.

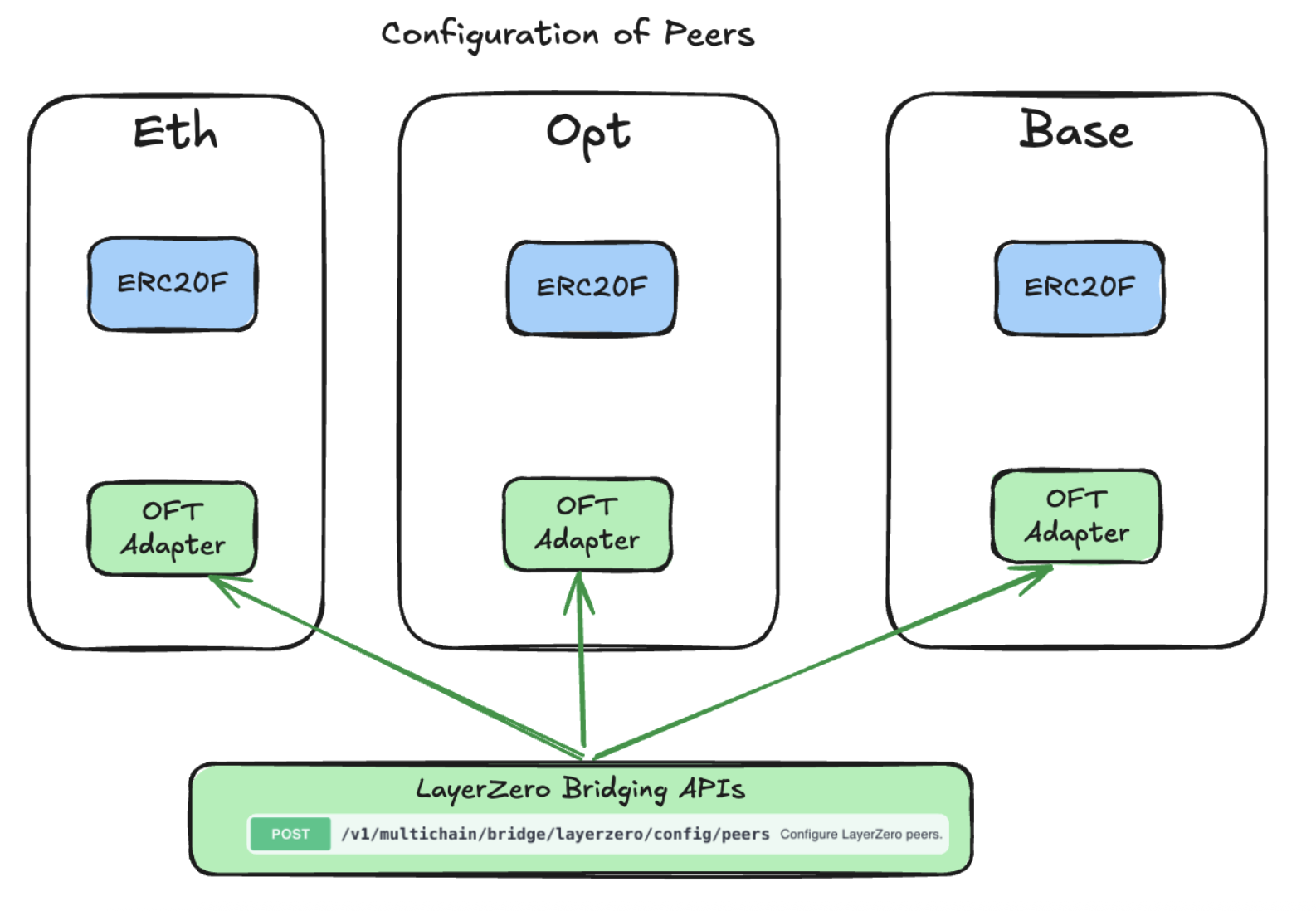

Step 3: Configure Adapter Peers

Set adapters as bidirectional peers:

const setPeersRequest = {
  vaultAccountId: '0',
  sourceAdapterTokenLinkId: 'first-adapter-link-id',
  destinationAdapterTokenLinkIds: ['second-adapter-link-id'],
  bidirectional: true,
};

await fireblocksSdk.tokenization.setLayerZeroPeers({
  setLayerZeroPeersRequestDto: setPeersRequest,
});

You can introspect peers with the getLayerZeroPeers function of the SDK.

Step 4: Configure Decentralized Verifier Networks (DVNs)

LayerZero uses DVNs for message verification. You need to fetch the current DVN configuration and then explicitly set it for your adapter channels.

Fetch current configuration

const dvnConfig = await fireblocksSdk.tokenization.getLayerZeroDvnConfig({
  adapterTokenLinkId: 'your-adapter-link-id',
});
console.log('Current DVN configuration:', dvnConfig);

Set configuration

const setDvnConfigRequest = {
  vaultAccountId: '0',
  sourceAdapterTokenLinkId: 'first-adapter-link-id',
  destinationAdapterTokenLinkId: 'second-adapter-link-id',
  sendConfig: {
    requiredDVNs: ['0xDVN1','0xDVN2'],
    optionalDVNs: [],
    optionalDVNThreshold: 0,
  },
  receiveConfig: {
    requiredDVNs: ['0xDVN1','0xDVN2'],
    optionalDVNs: [],
    optionalDVNThreshold: 0,
  },
};

await fireblocksSdk.tokenization.setLayerZeroDvnConfig({
  setLayerZeroDvnConfigRequestDto: setDvnConfigRequest,
});

Troubleshooting

Insufficient gas: Top up native tokens on both chains
Role errors: Verify all admin addresses
Peer setup issues: Make sure both adapters are deployed before linking
DVN errors: Run validateLayerZeroChannelConfig for diagnostics

Next Steps

After setup, you can:

Test cross-chain transfers (approve, quoteSend, then send)
Bridge tokens directly via adapter contracts (quoteSend → send).
Add more adapters for additional chains
Customize DVN settings for advanced verification
